You see them every day. Those little glass bulbs sticking out of the ceiling in your office, the local grocery store, or that hotel room you stayed in last weekend. Most people don't give them a second thought until a rogue ladder or a stray volleyball hits one. Then, it's not a fire you're dealing with—it's a flood. A massive, black-water, building-destroying flood. That is exactly why a fire sprinkler head guard exists, though honestly, most people treat them as an afterthought or buy the wrong ones entirely.
Sprinkler heads are delicate. They have to be. They are designed to react to heat by shattering a small glass bulb (the Frangible Bulb) or melting a metal link. This triggers the water flow. The problem? It doesn't take a fire to break that bulb. A janitor’s mop handle or a pallet jack in a warehouse can do the job in half a second. Once that seal is broken, you’re looking at roughly 25 to 50 gallons of water per minute pouring into your space.
The Reality of Mechanical Damage
Mechanical damage is the leading cause of accidental discharge. We aren't talking about fires here. We're talking about human error. In high-traffic environments like gymnasiums, warehouses, or even low-ceiling basements, the risk is constant. If you’ve ever seen the aftermath of a "non-fire" discharge, you know it’s a nightmare. The water sitting in those pipes has been there for years. It’s stagnant. It’s oily. It smells like a swamp.

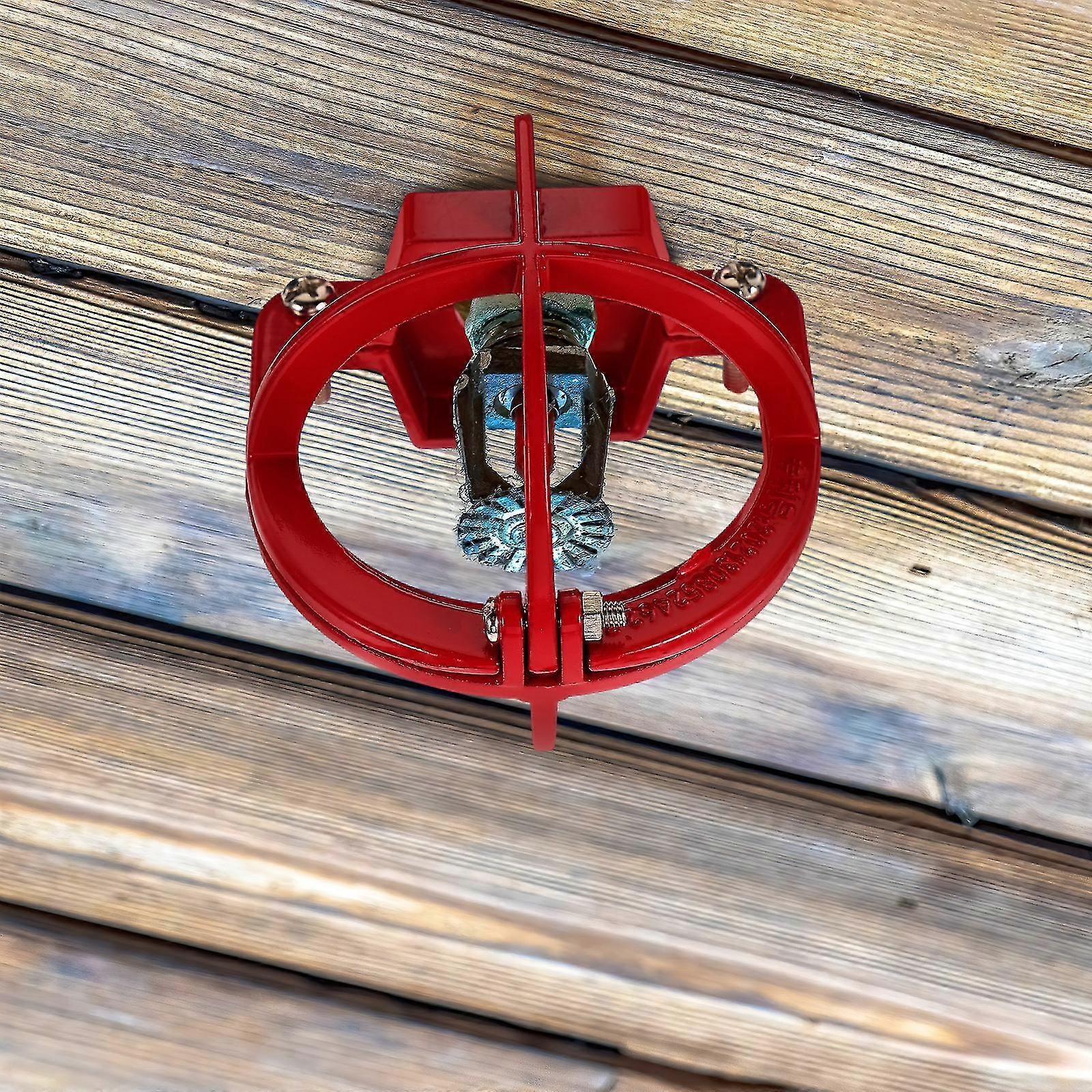

A fire sprinkler head guard acts as a roll cage for your fire protection system. It’s a simple wire cage, usually made of steel or heavy-duty chrome, that wraps around the head. It provides a buffer. If a box falls off a shelf, it hits the cage, not the glass bulb. It sounds simple, but the engineering has to be precise. You can't just slap any piece of metal over a sprinkler head and call it a day.
Why NFPA 13 Actually Matters
The National Fire Protection Association (NFPA) doesn't make suggestions; they make the rules that your insurance company uses to decide whether or not to pay your claim. Specifically, NFPA 13 is the "Standard for the Installation of Sprinkler Systems." It dictates that guards must be used whenever a sprinkler is "subject to mechanical injury."
🔗 Read more: Tesla Stock After Hours: What Most People Get Wrong About the Late-Night Tickers
But here is the kicker: the guard must be "listed" for use with that specific sprinkler head. You can't put a Victaulic guard on a Tyco head unless it’s specifically tested and approved for it. Why? Because a guard that is too bulky might interfere with the spray pattern. If the water hits the cage and turns into a mist instead of a direct stream, it won't cool the fuel source effectively. The fire wins.
Different Types for Different Disasters
Not all cages are built the same. You’ve got your standard "one-piece" guards that are basically just a wire basket. Then you have "two-piece" guards. These are better for retrofitting. You don't have to take the sprinkler head off (which involves draining the whole system—a massive pain) to install them. They just snap together around the existing head.
Then there are the heavy-duty versions. In a gymnasium or a prison, a standard wire cage isn't enough. You need something that can take a direct hit from a basketball or a deliberate attempt at vandalism. These are often called "baffles" or heavy-duty shields. They are thicker, uglier, and significantly more expensive. But they save you $50,000 in water damage remediation.
The Chrome vs. Red Debate
Appearance matters in some buildings, but function dictates the finish. Most fire sprinkler head guard options come in chrome, white, or red.
- Chrome is the standard for offices. It blends in.
- Red is for visibility. You want the guy driving the forklift to see the guard from 20 feet away so he stays clear.
- White is mostly for aesthetic purposes in finished ceilings.
Don't paint them yourself. Seriously. If you paint a sprinkler head or its guard, you’ve likely just "vandalized" a life-safety device in the eyes of the Fire Marshal. Paint can act as an insulator, delaying the bulb from breaking during an actual fire. Or it can stick the cage to the head in a way that messes with the discharge.
The Financial Impact of Being Cheap
Let's talk money. A standard, high-quality guard might cost you $10 to $20. A full-scale accidental discharge in a commercial server room or a high-end retail store can easily exceed $100,000 in damages within ten minutes. That's not hyperbole.
I once saw a warehouse where a forklift driver clipped a single pendant head. Because they didn't have a fire sprinkler head guard installed, the bulb shattered instantly. By the time they found the shut-off valve—which, of course, was behind a locked door that nobody had the key for—three aisles of electronics were ruined. The insurance company fought the claim because the "mechanical injury" was preventable and the heads weren't protected according to local codes.
Installation Nuances
Installing these isn't exactly rocket science, but it's finicky work. You’re working around a pressurized system. One slip of the wrench and you’re the guy who flooded the building.
- Ensure the guard matches the brand of the head (Tyco, Viking, Victaulic, Reliable).
- Use two-piece guards for existing systems to avoid system shutdowns.
- Check the "K-factor" and the deflector style. Some guards are made for "upright" heads, others for "pendant" (hanging) heads. They are NOT interchangeable.
Common Misconceptions
People think a guard makes the sprinkler indestructible. It doesn't. If you hit a guard hard enough with a piece of heavy machinery, you’ll just crush the cage into the bulb, causing the same result. The guard is for incidental contact. It's for the "whoops" moments, not for stopping a 5-ton truck.
Another myth is that guards are only for low ceilings. Actually, if you have a high-stack warehouse, those heads at the top are arguably at higher risk because of how pallets are moved. If a load shifts, those heads are vulnerable.
Actionable Steps for Facilities Managers
If you're responsible for a building, don't wait for the Fire Marshal to write you a citation. Do a walkthrough today.
- Identify the "Strike Zones": Look for any sprinkler head lower than 7 feet or anywhere near storage racks.
- Check the Brand: Look at the deflector (the little metal plate at the tip of the head). It usually has the manufacturer's name stamped on it.
- Buy Listed Guards: Order the specific fire sprinkler head guard designed for that model.
- Verify the Finish: If it’s a warehouse, go with red. If it’s a hallway, chrome is fine.
- Document Everything: Keep the "cut sheets" (the technical specs) for the guards to show the inspector. It proves you used the right equipment.
Properly protecting your fire suppression system is basically insurance for your insurance. It's a small investment that prevents a catastrophic, non-fire-related disaster. Keep the water in the pipes until it's actually needed to save lives.
